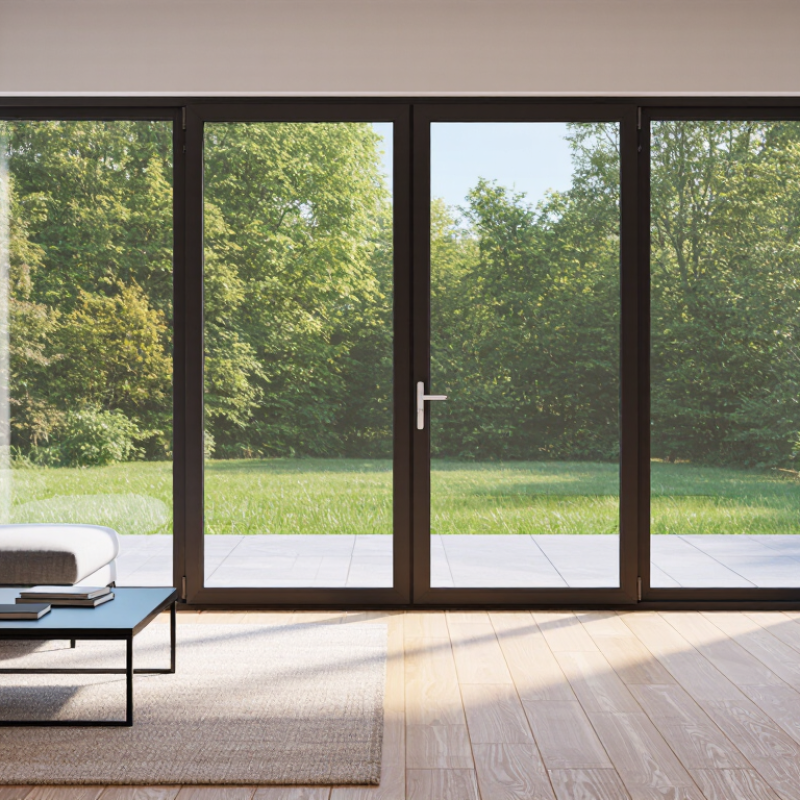

How to Choose Patio Doors in 2026?

Choosing patio doors in 2026 means balancing daylight, easy access, energy performance, and the space around your home. A wide glass opening can brighten a shaded living room, but it may also reveal fingerprints, frame wear, and a view you did not expect to frame. Small details matter.

Start with the opening and how you use it. Sliding patio doors save floor space, while hinged or folding designs need room to swing or stack. Check the threshold, handle reach, screen options, and how the door performs in your local weather. Then compare frame materials, glazing, warranties, and installation requirements—not just the showroom price. A beautiful door is still a poor fit if it catches on a rug or makes the room harder to furnish.

One point needs care: no expert quotation or source was supplied, so I cannot responsibly attribute an invented sentence to a named patio-door specialist. A reliable guide should use a verifiable expert statement. For now, keep this practical rule in mind: measure twice, test the hardware, and ask who will install and service the door. It is not glamorous advice. It can prevent an expensive mistake.

Table of Contents [Hide]

1 Set Priorities: Climate, Opening Width, Access, and Daily Traffic

2 Choose a Configuration: Sliding, Hinged, Folding, or Multi-Panel Doors

3 Compare NFRC Ratings: U-Factor, SHGC, Air Leakage, and Visible Transmittance

4 Verify Safety and Size Limits with ASTM F842 and Manufacturer Data

5 Assess Lifecycle Value: DOE Attributes 25–30% of Home Energy Loss to Windows and Doors

Set Priorities: Climate, Opening Width, Access, and Daily Traffic

How to Choose Patio Doors in 2026?

Climate should guide the door before appearance does. In cold regions, look for strong insulation, low air leakage, and glass suited to winter temperatures. In hot, sunny areas, choose glazing that limits solar heat without making the room dark. Coastal homes need corrosion-resistant hardware and careful drainage. A beautiful door is still a poor choice if wind-driven rain reaches the floor.

Measure the opening width in several places, not just once. Walls can shift slightly, especially in older homes. Measure twice. Wider openings create better views and easier furniture movement, but large panels need stronger tracks and more clearance. A hinged door may provide a broader opening, while a sliding design can save valuable interior space. Neither option fits every room.

Access needs practical attention. A low threshold helps children, older adults, and wheelchair users move more safely. Check the path from the driveway, patio, and kitchen. Daily traffic matters more than occasional entertaining. For a busy family entrance, choose durable rollers, easy handles, and a locking system that feels simple at night. Pets add another concern; small gaps and fragile screens rarely survive constant use. I once saw a carefully planned opening fail because the furniture blocked one panel. That mistake was avoidable. Sketch the room with real furniture before ordering, then review the plan with a qualified installer.

Choose a Configuration: Sliding, Hinged, Folding, or Multi-Panel Doors

How to Choose Patio Doors in 2026?

Choose a Configuration: Sliding, Hinged, Folding, or Multi-Panel Doors

Patio doors now connect kitchens, dining rooms, and outdoor seating areas. The choice should begin with movement, not appearance. The 2024 NAHB “What Home Buyers Really Want” report found that 86% of buyers consider a patio desirable or essential. That demand makes door planning more important.

Sliding doors suit narrow rooms because their panels travel beside fixed glass. They need little clearance for furniture or rugs. Hinged doors open widely, but their swing can block a table or walkway. Folding doors create a broad opening and work well beside level terraces. However, their tracks need careful cleaning, especially where sand collects. Multi-panel systems offer dramatic views, yet larger glass areas may increase heat gain and installation costs. Space changes everything.

The U.S. Department of Energy notes that air leakage can significantly affect heating and cooling demand. Therefore, compare weather-stripping, frame performance, and installation quality, not only the glass size. Look for tested air, water, and structural ratings from recognized fenestration standards. A low threshold may improve accessibility, but poor drainage can invite water indoors. I have seen beautiful openings fail because the exterior slope was ignored. That mistake is easy to repeat. Check the sill height, furniture clearance, prevailing wind, and daily traffic before selecting the configuration. A smaller sliding door may perform better than an oversized folding system when maintenance time is limited.

Compare NFRC Ratings: U-Factor, SHGC, Air Leakage, and Visible Transmittance

How to Choose Patio Doors in 2026?

In 2026, choosing patio doors means reading the NFRC label, not trusting glass size alone. U-Factor measures heat transfer through the whole door assembly. Lower values generally indicate better insulation. In a cold region, a low U-Factor can reduce chilly interior surfaces near the frame. I have found this matters most beside sofas and dining tables.

SHGC shows how much solar heat enters through the glazing. A higher rating may help a shaded, cold-facing room, but it can overheat a sunny south-facing space. Air Leakage measures how much air passes through the closed door. Lower is better. This rating deserves attention because a well-insulated door can still feel drafty when seals or installation are poor.

Visible Transmittance, or VT, indicates how much daylight passes inside. Higher VT can brighten a hallway, although glare may become uncomfortable near a television. Compare ratings from the same testing system, and check whether values describe the complete door unit. Installation changes real performance. Small gaps, uneven tracks, or compressed weatherstripping can undermine laboratory results. I once focused too heavily on U-Factor and overlooked afternoon heat. That was a useful mistake. Ask for orientation-specific guidance, climate data, and written performance figures before ordering.

How to Choose Patio Doors in 2026?

Compare NFRC Ratings: U-Factor, SHGC, Air Leakage, and Visible Transmittance

The chart compares representative values for common patio-door glazing configurations. The performance score is normalized to 0–100 for comparison: lower U-Factor and air leakage receive higher scores, while higher SHGC and visible transmittance receive higher scores. Actual NFRC values vary by frame, glass package, size, and climate zone, so always verify the NFRC label.

Verify Safety and Size Limits with ASTM F842 and Manufacturer Data

How to Choose Patio Doors in 2026?

When choosing patio doors, verify safety before admiring frame colors or handle finishes. ASTM F842 can help evaluate sliding patio door performance, including air, water, structural, and operational requirements. However, it is not a universal size chart. A door may meet the standard while still exceeding a particular wall opening or installation condition.

Ask for the current test report and product data sheet. Check the tested panel size, maximum approved dimensions, glass type, operating force, and design pressure. Confirm whether the published limits apply to the complete door assembly, not only the frame. Safety glazing deserves close attention near floors, steps, and walking areas. Tempered or laminated glass may be required by local building rules. Confirm this with a qualified professional.

Measure the rough opening in several places. Record width, height, sill condition, and nearby drainage paths. Small errors become obvious when a large panel refuses to align. I once treated a listed maximum size as a comfortable target. That was a mistake. Maximum does not mean ideal. Leave room for structure, adjustment, and seasonal movement. Also review installation instructions, warranty conditions, and maintenance access. Manufacturer data can be unclear, and I still question impressive numbers without test evidence. A door should operate smoothly after installation, not only look safe on paper.

Assess Lifecycle Value: DOE Attributes 25–30% of Home Energy Loss to Windows and Doors

How to Choose Patio Doors in 2026?

The U.S. Department of Energy attributes roughly 25–30% of home energy loss to windows and doors. Patio doors can contribute significantly because their glass area is large and frequently used. In my experience, a beautiful door can still create a cold indoor strip if its frame, seals, or installation perform poorly. Compare U-factor, solar heat gain coefficient, and air-leakage ratings before comparing finishes. Lower U-factor usually means better insulation, while solar heat gain depends on your climate and room orientation.

Measure the opening carefully, including the sill and surrounding wall condition. Look for insulated frames, multi-layer glazing, durable weatherstripping, and a firmly supported threshold. A smooth sliding track matters, too; dirt and slight movement can weaken the seal over time. DOE guidance is useful, but it cannot predict every home’s result. Shade, wind exposure, installation quality, and indoor humidity change real performance. That part is easy to underestimate.

Tips: Stand beside the closed door on a windy day. Feel for drafts. Inspect the bottom corners after rain. Ask for the complete performance label, not just an energy-efficiency claim. Choose glazing suited to your climate. A door with excellent glass may disappoint if the wall opening is uneven. I have seen homeowners focus on appearance and regret ignoring installation details. Sometimes, spending more on careful fitting brings greater lifecycle value than choosing a cheaper, higher-rated product.

How to Choose Patio Doors in 2026? – Assess Lifecycle Value: DOE Attributes 25–30% of Home Energy Loss to Windows and Doors

Energy context: The U.S. Department of Energy (DOE) estimates that heat gain and heat loss through windows account for about 25–30% of residential heating and cooling energy use. This is an estimate for windows—not a claim that windows and doors together account for 25–30% of total home energy loss. Patio-door performance depends on the specific product, installation, climate, and home.

Lifecycle factor	Verified performance information	What to compare when choosing	Lifecycle value consideration
Energy impact	DOE estimates windows account for about 25–30% of residential heating and cooling energy use. Actual savings from a door replacement vary by home and product.	Assess the existing door’s condition, drafts, glass area, local climate, and heating and cooling needs before estimating savings.	Treat energy savings as home-specific; avoid relying on a universal payback period or savings percentage.
U-factor	U-factor measures the rate of heat transfer through the complete fenestration product. Lower values indicate better insulation.	Compare certified whole-door U-factor values on the product label, not glass-only figures. Consider climate and local energy requirements.	A lower U-factor can reduce heat flow, but the benefit depends on the home, installation, and energy prices.
Solar Heat Gain Coefficient (SHGC)	SHGC indicates how much solar radiation enters through a product. Lower values admit less solar heat; the preferred value depends on climate, orientation, and shading.	Compare certified whole-door SHGC values and consider afternoon sun, overhangs, trees, and whether passive winter solar heat is useful.	Choosing for local sun exposure can help manage cooling loads and comfort; lower SHGC is not automatically best for every home.
Air leakage and installation	Air leakage is distinct from U-factor. The rated product and the installed assembly can perform differently if gaps or poor flashing allow air or water through.	Review available air-leakage ratings and installation instructions; check sill support, perimeter sealing, flashing, and drainage details.	Correct installation helps protect comfort, energy performance, and the surrounding structure from moisture damage.
Glazing and frame	Insulating glass, low-emissivity coatings, and insulated frames can affect heat transfer and solar gain. Performance varies by configuration.	Compare the full product’s certified ratings, glazing configuration, frame construction, and suitability for the installation exposure.	Evaluate the whole assembly rather than assuming one material or glass feature guarantees better long-term performance.
Operation and accessibility	Sliding and hinged patio doors differ in operating space, threshold details, and hardware. Suitability depends on the opening and household needs.	Test how smoothly the door opens and locks; check clear opening, threshold height, screen operation, and space for the door swing where relevant.	A door that is easy to operate and maintain is more likely to remain practical throughout its service life.
Maintenance and durability	Maintenance needs vary with materials, finishes, hardware, climate, and exposure. No single maintenance interval applies to every patio door.	Review care instructions, finish and hardware coverage, replacement-part availability, and the warranty’s exclusions and maintenance conditions.	Compare expected upkeep and repairability alongside the purchase price; do not assume a warranty covers every component or cause of damage.
Certification and documentation	NFRC labels provide standardized energy-performance ratings for covered products. ENERGY STAR qualification requirements depend on product type and applicable region or specification.	Confirm the exact door configuration and dimensions are covered by the ratings; check current ENERGY STAR criteria and local code requirements.	Comparable, documented ratings make it easier to evaluate performance and verify that the selected product suits the project.
